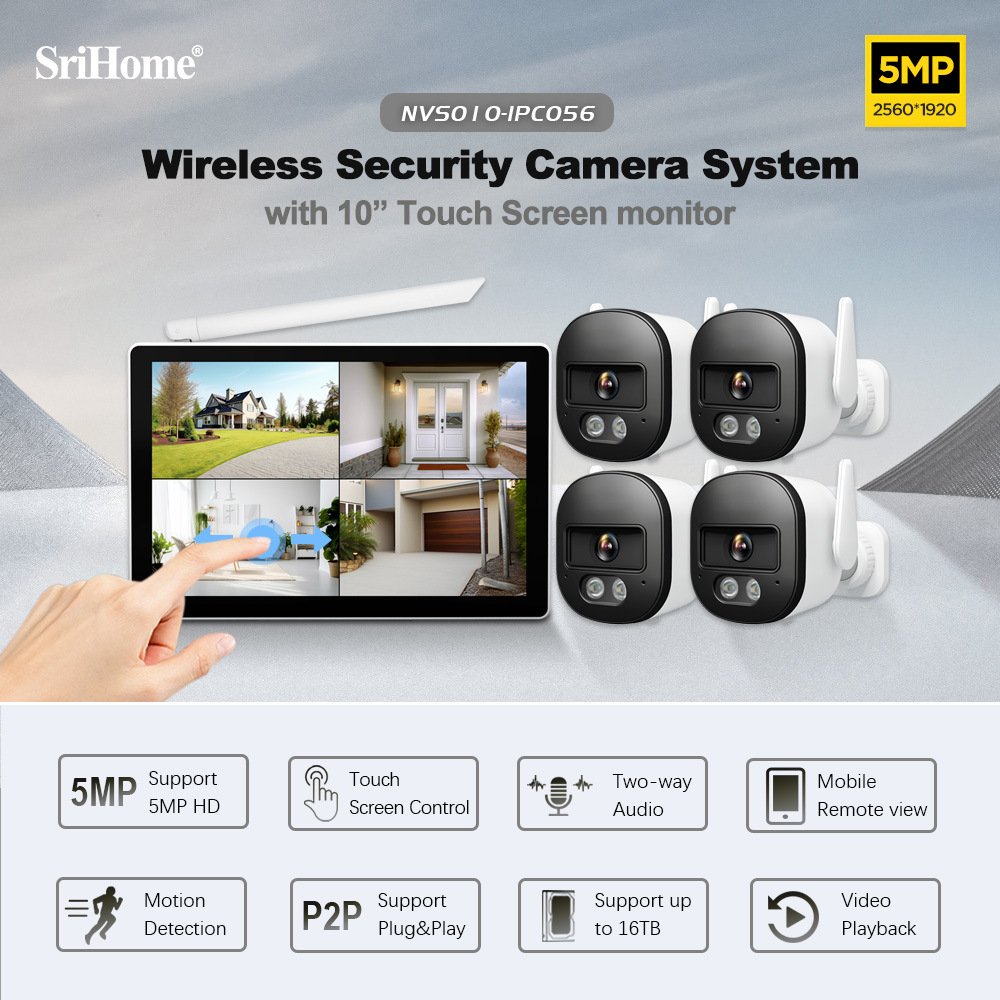

Srihome 5MP 4CH POE Wifi Security Camera System With 10.1 Inch Touch Screen Home Video Surveillance Kit Audio Outdoor Ip CameraS

About this item

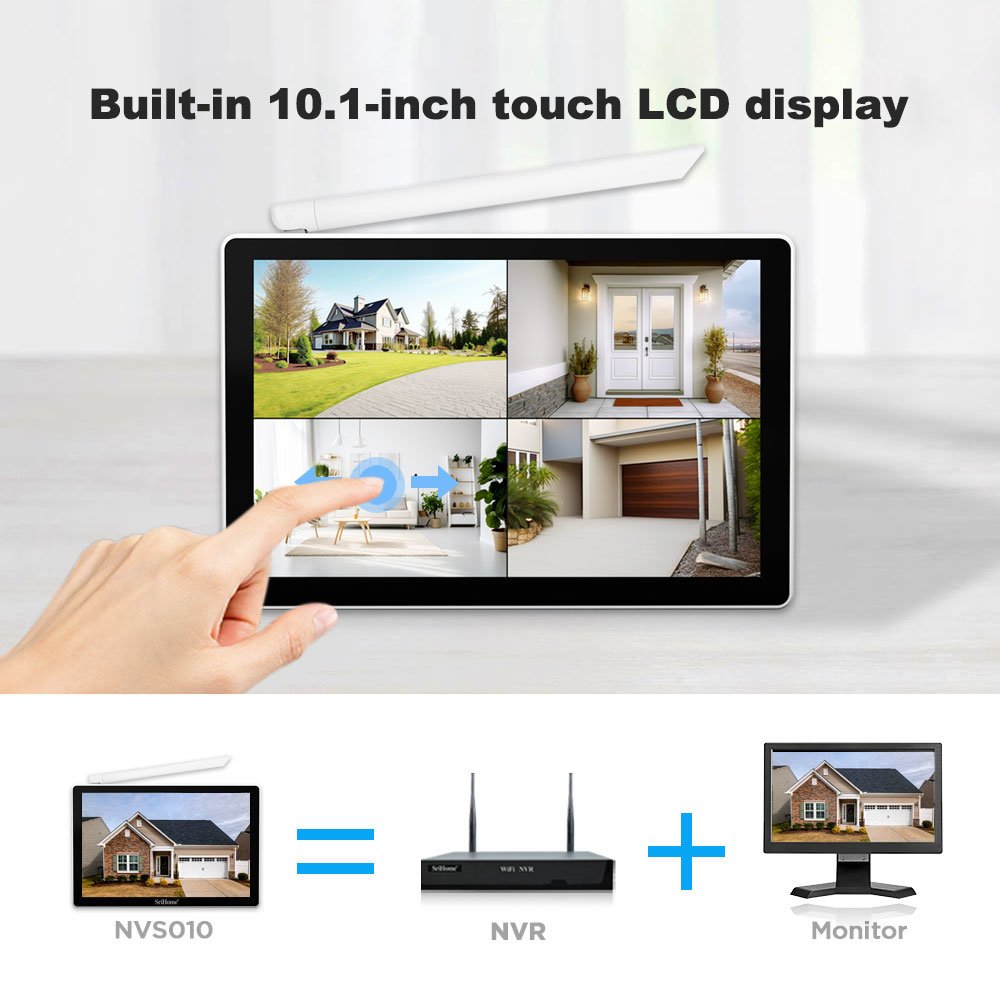

1. 5MP 10.1-inch LCD screen and support multi-touch
2. 5MP,8CH wireless NVR
3. Support one-click configuration to access the Internet
4. Support up to 16TB hard disk storage and playback (2.5 inches)

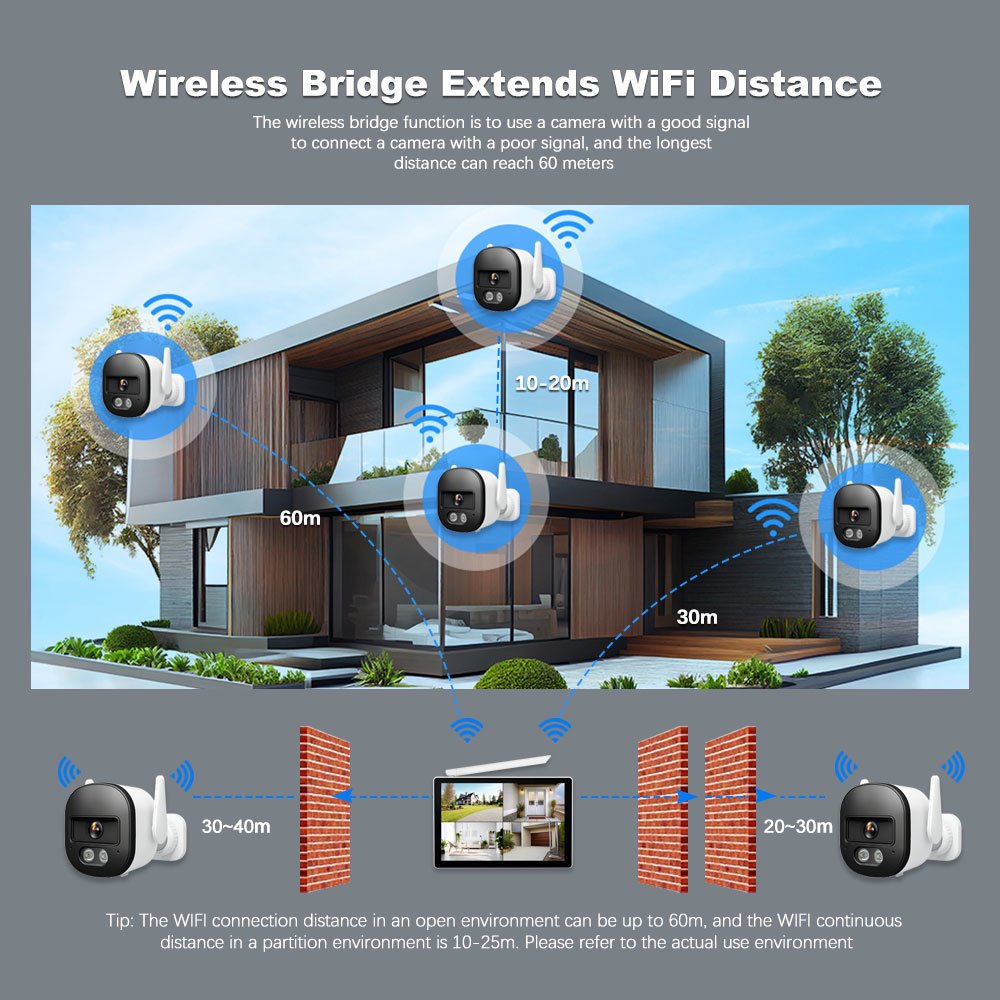

5. Support wireless bridge mode-WiFi range up to 60 meters
6. Support for HDMI and VGA or MIPI screen output
7. Two-way voice, built-in omni-directional microphone and speaker

Display parameters

Screen size: 10.1-inch LCD screen
Display resolution: 800xRGB(3)x1280
Touch: Support multi-touch

Video parameters

Video input: 8 CH
Video output interface: 1 HDMI, 1 VGA
Compression format: H265/H264/Smart264
Coding capability: 8*5M/25fps
Decoding capability: 1*5M/25fps (main stream); 8*D1/25fps (auxiliary stream)
Video decoding format: H265; H.264

Audio parameters

Audio: two-way voice
Audio output: HDMI and 1-way AUX interface audio output, built-in speaker
Audio decoding format: G.711U; AAC

Hard disk parameters

Hard drive interface: 1 SATA interface (only supports 2.5-inch hard drives), SSD&HDD
Hard drive capacity: maximum support 16TB

Recording/playback

Recording mode: scheduled recording, alarm recording
Playback mode: regular playback and APP playback
Backup mode: regular backup

Network management

WiFi: 2.4G, only for standard camera connection
WAN: RJ45 wired connection
Network services: Support DHCP, DNS, DDNS, NTP, UPNP, etc.

interface

Network interface: one RJ45 network interface
USB interface: 1 USB2.0
HDMI interface: 1
VGA interface: 1
Audio interface: 1 AUX audio output interface
Power interface: 1 DC 12V 2A (5.5*2.1*10)

PTZ camera

Camera IPC056 (WiFi)
System Multi-core high-speed processor
1/3 inch, 5 million high-definition color CMOS sensor
Compression format: H.265

lens
Lens parameters: Focal length: 4mm, 5 million pixels
Viewing angle: Field of view: D 110 H 80 V 58

Video
Resolution: 1920P(2560*1920), VGA(480*360)
Frame frequency: 15 frames
IR-Cut: Built-in IR-Cut, no color cast indoors and outdoors, good night vision effect

Audio
Built-in microphone and speaker, supports two-way voice
Protocol: G711

Night vision
Alarm mode: The default is black and white night vision, when a human figure is detected, the white light is turned on
White light mode: Working period: 17:00~8:00, turn on the white light, full color night vision, adjustable brightness
Infrared mode: Turn off the white light and switch to normal night vision

Alarm mode
Alarm: motion detection alarm, humanoid alarm
Siren: Alarm whistle can be set
Area detection: Supports customization of motion detection alarm areas to improve alarm accuracy

Wireless
Wireless: 2.4G (only connected to NVS001E/NVS010 host)
Network distribution mode: QR code network distribution, button network distribution

[What is Free Return]
In order to better serve our customers, our store has joined AliExpress' free return service. Currently, the service has covered 24 countries, namely United States, Canada, Mexico, Australia, United Kingdom, Germany, Poland, France, Spain, Portugal, Italy, Netherlands, Belgium, Czech Republic, Switzerland, Russia, Ukraine, Brazil, Chile, Israel, Japan, South Korea, Saudi Arabia and United Arab Emirates. Other countries are still waiting for AliExpress to gradually cover. Customers with orders shipped to these 24 countries can enjoy free local returns for any reason within 15 days from the date of receipt of the product.
[How to use Free Return]
https://customerservice.aliexpress.com/category?categoryId=21037515&hcAppId=1248&hcFromCode=Xn2Tk1tb7&hcSessionId=26-1248-d460eee3-8085-4238-9474-9645841c023c&spm=service_hall.24300481.zhishixiangqing.jumpToCategory

1. Your positive feedback will be a great encouragement to us, and we will do the same for you.
2. If you are not satisfied with the product, please feel free to contact us. Communication is very important to us, your kindness and understanding are highly appreciated.

Srihome was founded in 2013 and specializes in manufacturing intelligent security network cameras. So far, our monthly production exceeds 100000 units, and our customers are located in more than 80 countries including the United States, Canada, Italy, Russia, Brazil, France, the United Kingdom, South Korea, Japan, and more.

Factory shooting

Certificate of honor

NVR Common Problem FAQ

1.How to retrieve the password of the NVR system terminal when forget it?

① Right-click the mouse, select logout, and return to the login interface.

② Check the automatic login, restart the NVR.

③ After the NVR is started, take a picture of the date and time in the lower right corner of the screen and inform the customer service.

④The customer service will give you a new password through the background operation.

⑤ The new password is time-sensitive and must be used on the same day. After successful login, the new password can be reset.

Note: For example, the date in the lower right corner of the NVR is 2023-02-15, and the password obtained by the customer service is through this date,

so this password must be used on this day; if the date reaches 2023-02-16, then you should tell the new date to the customer service and get a new password.

2. How to retrieve the password of the NVR mobile terminal when you forget it/how to reset the administrator of the NVR mobile terminal ?

Open the Control Panel→Click Restore Default→Select APP User→Click OK

At this time, all mobile phone users who have added NVR will be cleared, and the password will be restored to 888888,

and then the first user who adds NVR will become the new administrator of NVR mobile terminal.

3.Why the NVR shows offline after the NVR is added to the SriHome APP?

① Check whether the network of the mobile phone is normal

② Check whether the network cable of the NVR is connected normally

③ Check whether the NVR power supply is normal

4.Why's it prompted the NVR is offline when adding NVR to SriHome App?

①NVR does not use a network cable to access the Internet

②The NVR is connected to the network cable, but there is no network on the network cable, and an exclamation mark appears on the network logo in the lower right corner,

open the network settings on the NVR system terminal and check whether "obtain an IP address automatically" is turned on

5. How to modify the IP address of the camera?

①Right click the mouse, open camera management, click 'search'

②Click 'Edit' to modify the tail number of the IP address, the number range is from 2 to 254, be careful not to repeat the default password with the IP address of other cameras, and click 'OK'

③ Click 'Search' again, refresh the IP address of the camera, and then add it

6. Why is the display resolution insufficient when adding a camera

The resolution of the NVR host is backward compatible.

If the resolution of the camera is higher than the highest resolution that the NVR host can support, the NVR cannot present the picture

Example: An 8MP camera cannot display images normally on an NVR that supports up to 5MP
