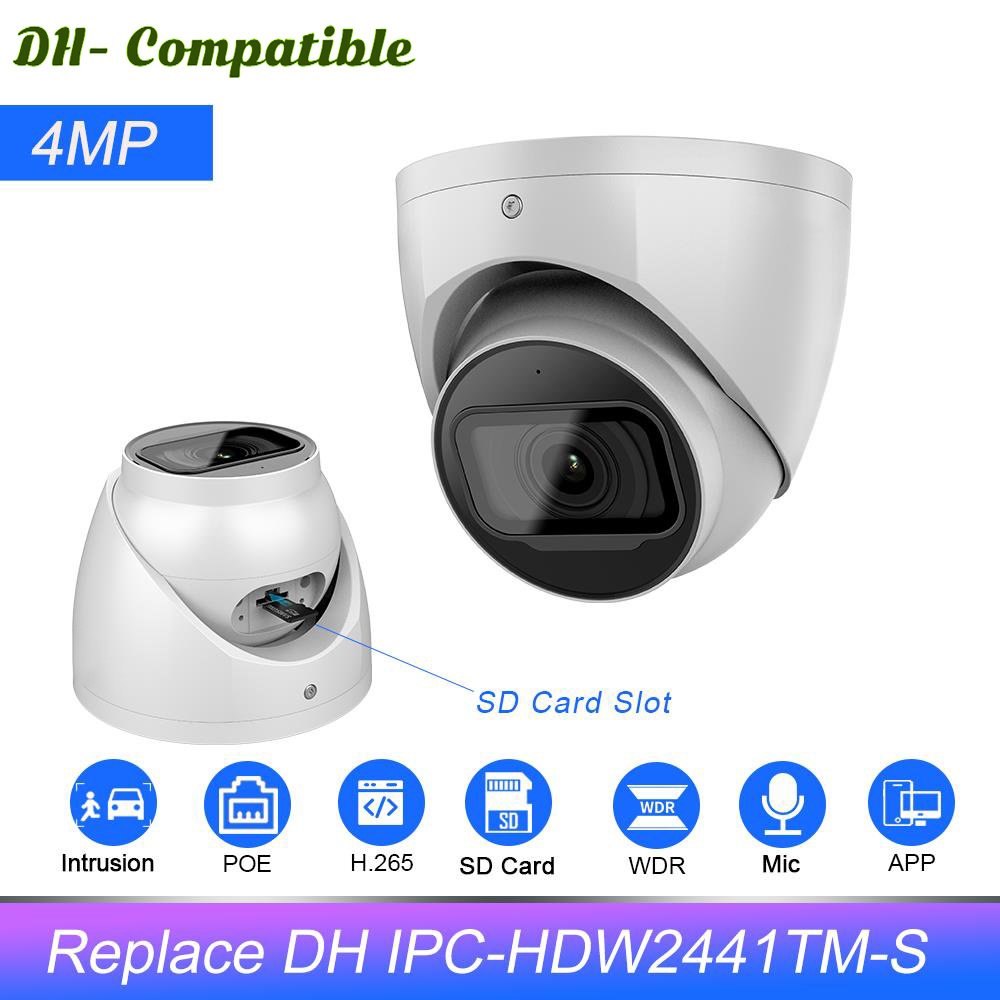

OEM Dahua 4MP Wizsense IP Camera replace IPC-HDW2441TM-S IR30M Starlight Built-in Mic SD Card Slot Security Surveillance Camera
4MP Wizsense IP Camera IR30M Starlight Built-in Mic SD Card Slot Security Protection Camera Replace DH IPC-HDW244TM-S-S2
1.This model isOEM from DH IPC-HDW2441TM-S ,support update firmware.
2.APP: smart pass OR IDMSS OR (IOS,Android), support download by QR code(If the camera needs to be added to the NVR, use the NVR APP management)
3.Search Tool:
ConfigTool: https://support.DHsecurity.com/en/toolsDownloadDetails?id=563
4.Notice: This camera is NOT Duhua ORIGINAL , is DH OEM, can plug & play with DH NVR, support most of the other brands NVR that support on-vif protocol, and the camera can be worked with most of security monitor software, like Blue Iris, iSpy, VLC, and so on

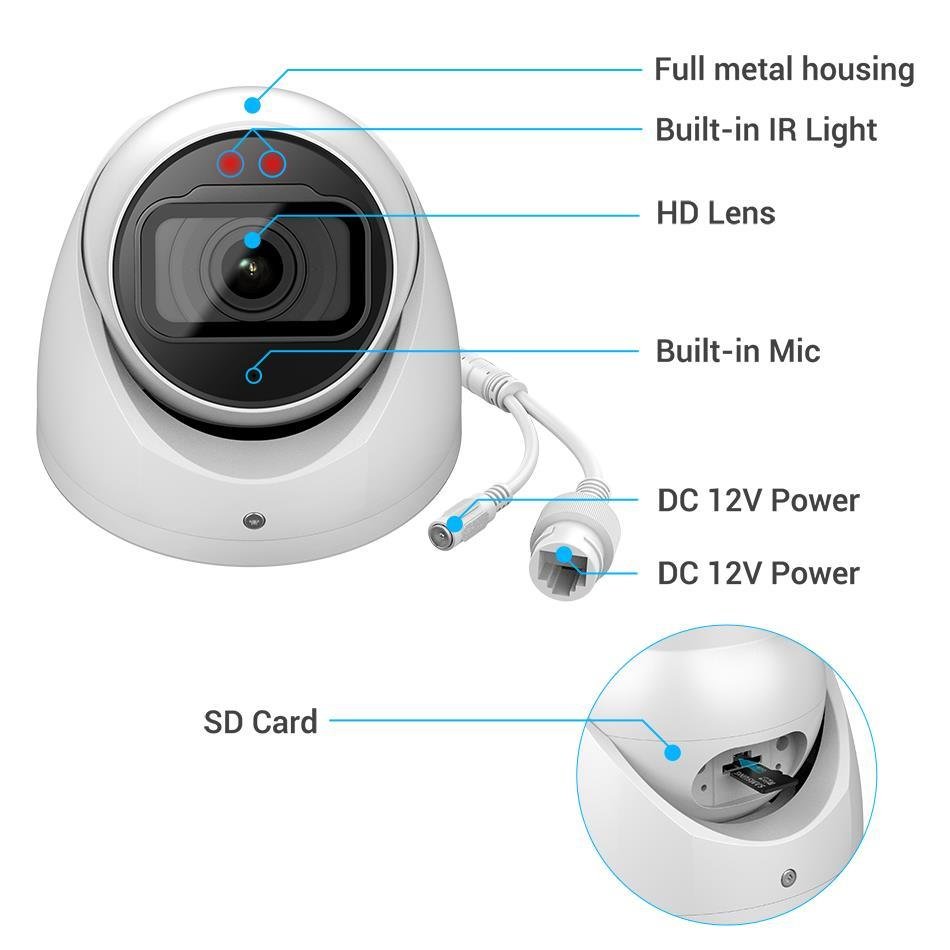

4MP IR Fixed-focal Eyeball WizSense Network Camera
> 4-MP 1/2.9" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688 × 1520)@20 fps, and supports 2560×1440@25/30fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, and the max. illumination distance is 30 m.
> ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
> Supports max. 256 G Micro SD card; built in MIC.
> 12 VDC/PoE power supply.
> IP67 protection.
> SMD Plus.
1.Camera:
Image Sensor:1/2.9" CMOS
Max. Resolution:2688 (H) × 1520 (V)
ROM:128 MB
RAM:128 MB
Scanning System:Progressive
Electronic Shutter Speed:Auto/Manual 1/3 s–1/100,000 s
Min. Illumination:0.008lux@F1.6(Color, 30 IRE);0.0008lux@F1.6(B/W, 30 IRE);0 lux (Illuminator on)
S/N Ratio:>56 dB
Illumination Distance:30 m (98.43 ft) (IR LED)
Illuminator On/Off Control:Auto; manual
Illuminator Number:1 (IR LED)
Pan/Tilt/Rotation Range:Pan: 0°–360°;Tilt: 0°–78°;Rotation: 0°–360°
2.Lens:
Lens Type:Fixed-focal
Lens Mount:M12
Focal Length:2.8 mm
Max. Aperture:F1.6
Field of View:2.8 mm: H: 95°; V: 52°; D: 114°;3.6 mm: H: 78°; V: 41°; D: 94°
Iris Control:Fixed
Close Focus Distance:2.8 mm: 0.9 m (2.95 ft)
3.Intelligence:
IVS (Perimeter Protection):Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
Smart Search:Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
4.Video:
Video Compression:H.264H; H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec:Smart H.265+; Smart H.264+
Video Frame Rate:Main stream: 2688 × 1520@ (1–20 fps)/2560 ×1440@(1–25/30fps)
Sub stream: 704 × 576@ (1–25 fps)/704 × 480@ (1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability:2 streams
Resolution:4M (2688 × 1520); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control:CBR/VBR
Video Bit Rate:H.264: 32 kbps–6144 kbps;H.265: 12 kbps–6144 kbps
Day/Night:Auto (ICR)/Color/B/W
BLC:Yes
HLC:Yes
WDR:120 dB
White Balance:Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control:Auto; manual
Noise Reduction:3D NR
Motion Detection:OFF/ON (4 areas, rectangular)
Region of Interest (RoI):Yes (4 areas)
Image Rotation:0°/90°/180°/270°(Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror:Yes
Privacy Masking:4 areas
5.Audio:
Built-in MIC:Yes
Audio Compression:G.711a; G.711Mu; PCM; G.726
6.Alarm:
Alarm Event:No SD card; SD card full; SD card error; network;disconnecton; IP conflict; illegal access; moton;detecton; video tampering; tripwire; intrusion; SMD; voltage detecton; security excepton
7.Network:
Network Port:RJ-45 (10/100 Base-T)
SDK and API:Yes
Network Protocol:IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP
Interoperability:ONVIF (Profile S/Profile T); CGI; P2P; Milestone
User/Host:6 (Total bandwidth: 36 M)
Storage:FTP; SFTP; Micro SD card (support max. 256 GB)
Browser:IE;Chrome;Firefox
Management Software:DSS; DMSS
Mobile Client:iOS; Android
Cyber Security:Configuration encryption;Trusted execution;Digest;Security logs;WSSE;Account lockout;syslog;Video encryption;802.1x;IP/MAC filtering;HTTPS;Trusted upgrade;Trusted boot;Generation and importing of X.509 certification
8.Certification:
Certifications:CE-LVD: EN 62368-1;CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;FCC: 47 CFR FCC Part 15, Subpart B
9.Power:
Power Supply:12 VDC/PoE (802.3af)
Power Consumption:Basic: 2.5 W (12 VDC); 3.3 W (PoE);Max. (ICR + H.265 + max. resolution + main stream + IR intensity + WDR + IVS): 4.2 W (12 VDC); 5.1 W (PoE)
10.Environment:
Operating Temperature:–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity:≤95%
Storage Temperature:–40 °C to +60 °C (–40 °F to +140 °F)
Protection:IP67
11.Structure:
Casing Material:Inner core: Metal
Cover: Metal
Decoration ring: Plastic
Product Dimensions:99.1 mm × Φ121.9 mm (3.90" × Φ4.80")
Net Weight:0.48 kg (1.06 lb)
Gross Weight:0.68 kg (1.5 lb)
1.4mp wizsense ip camera*1
2. Screw bag * 1
3.Waterproof Accessories for IP Camera * 1
